Front & Rear Tailgate Handle Camera W/ Multi-Cam Interface For Factory 8" IO5/IO6 Display, Fits 2014-18 GM® Truck
SKU#: CS-GMLNK-FR
Availability:
In Stock
SKU#:
CS-GMLNK-FR
$745.00
Quantity
Front & Rear cams for factory 8" screen!
Description
Here's a complete solution for your 2014-18 Chevrolet®/GM® truck with the 8" MyLink/IntelliLink screen (IO5 or IO6 option code) that will allow you to see clearly while backing AND allow you to see forward in tight spaces! This is a complete kit that contains our tailgate handle rear camera, universal front camera, and a multi-cam integration module for your 8" factory screen.
This camera kit is the perfect solution for those who own a 2014-18 GMC® truck with the 8" IntelliLink screen and want a front and rear-view camera. The kit comes complete with OE fit rear camera system, which is our high-resolution camera mounted in an OEM tailgate handle assembly and universal front camera. Comes with all the wiring and the integration harness needed to interface directly with your MyLink/IntelliLink system with no dealer flashing required. The rear camera will come on automatically when in reverse and front camera will come on automatically when shifting from reverse to drive or manually activated using the included push button.

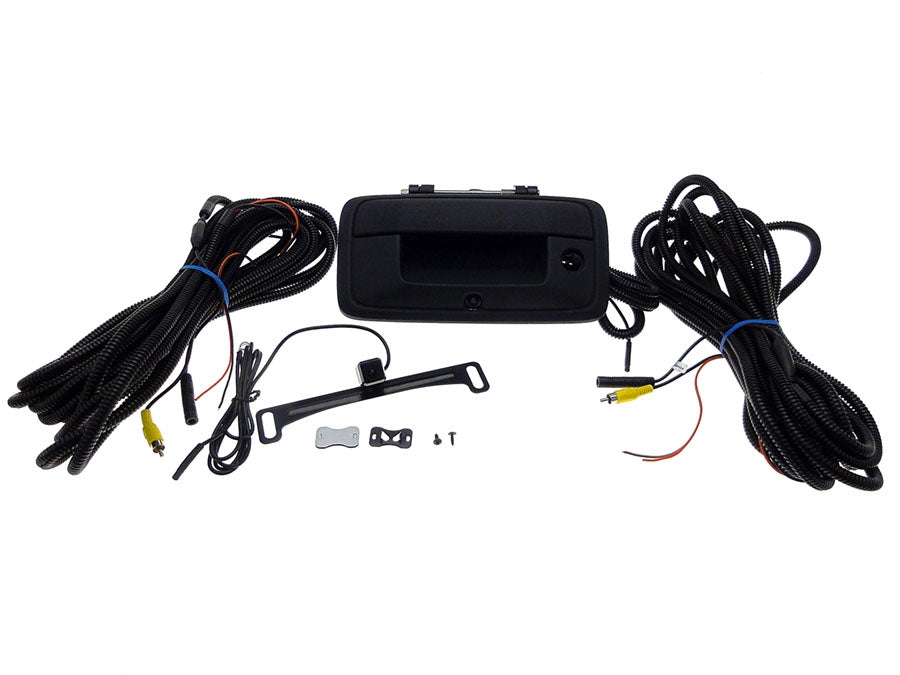

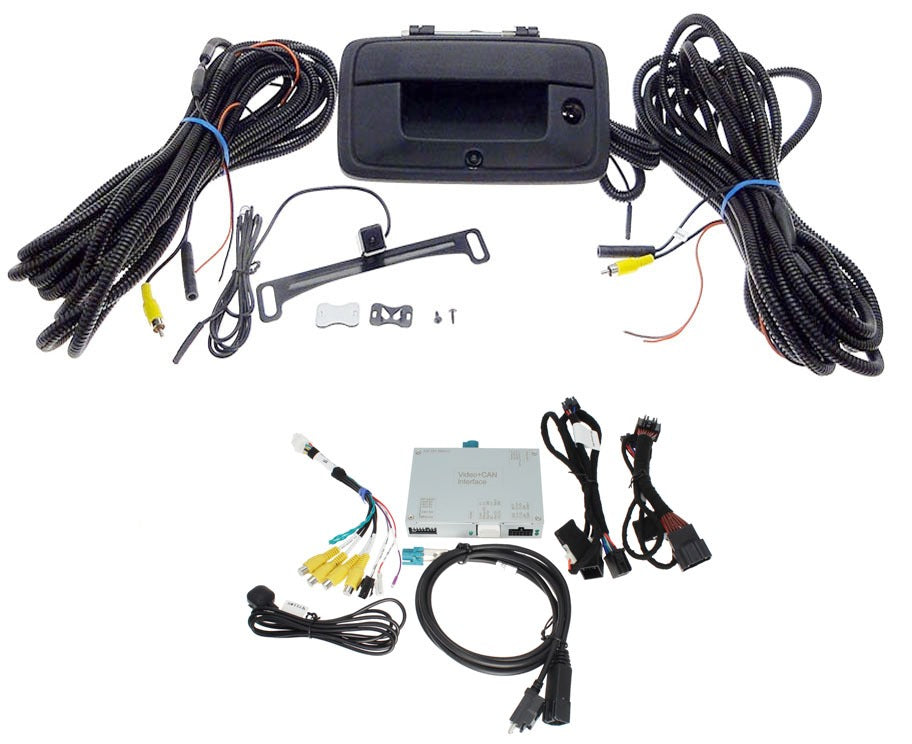

Kit includes:

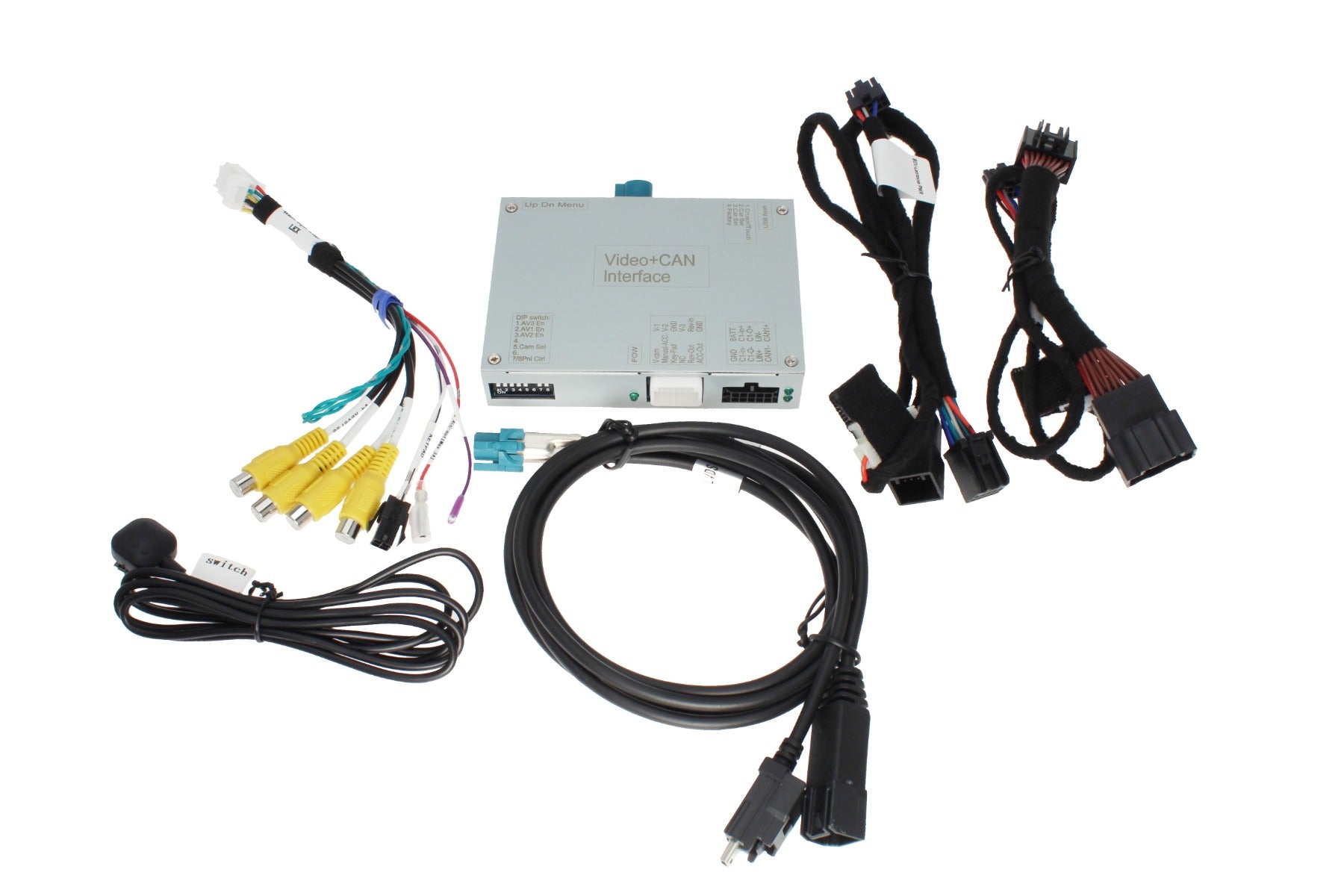

- Multi-cam interface for your MyLink/IntelliLink 8" factory display (display not included)- plug and play and no dealer flashing required!

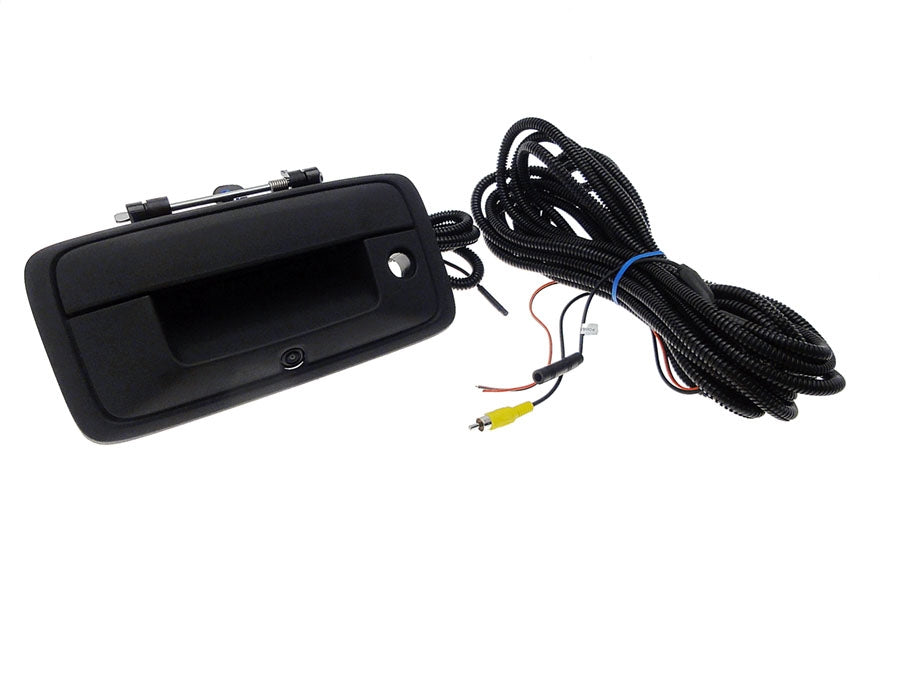

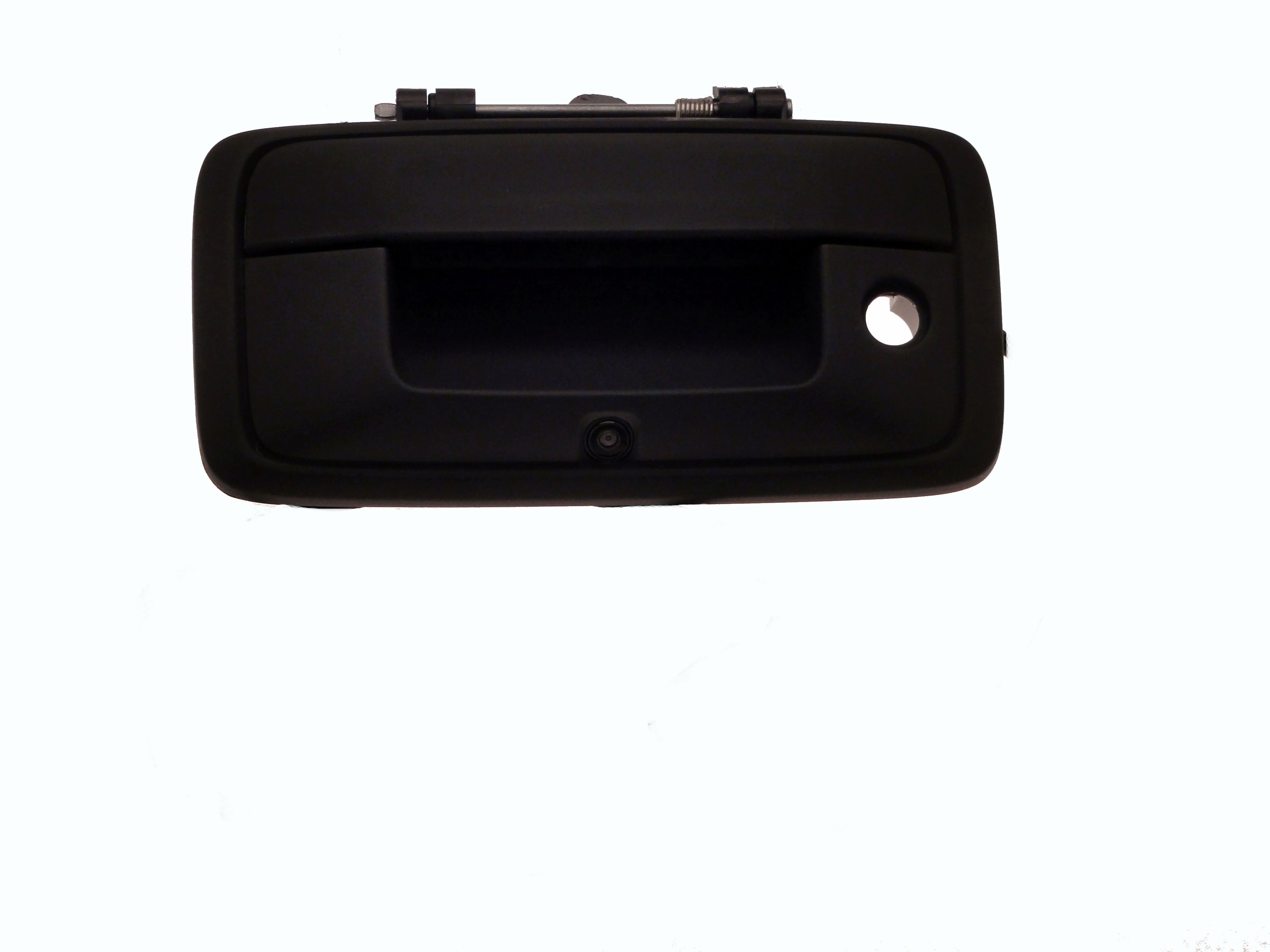

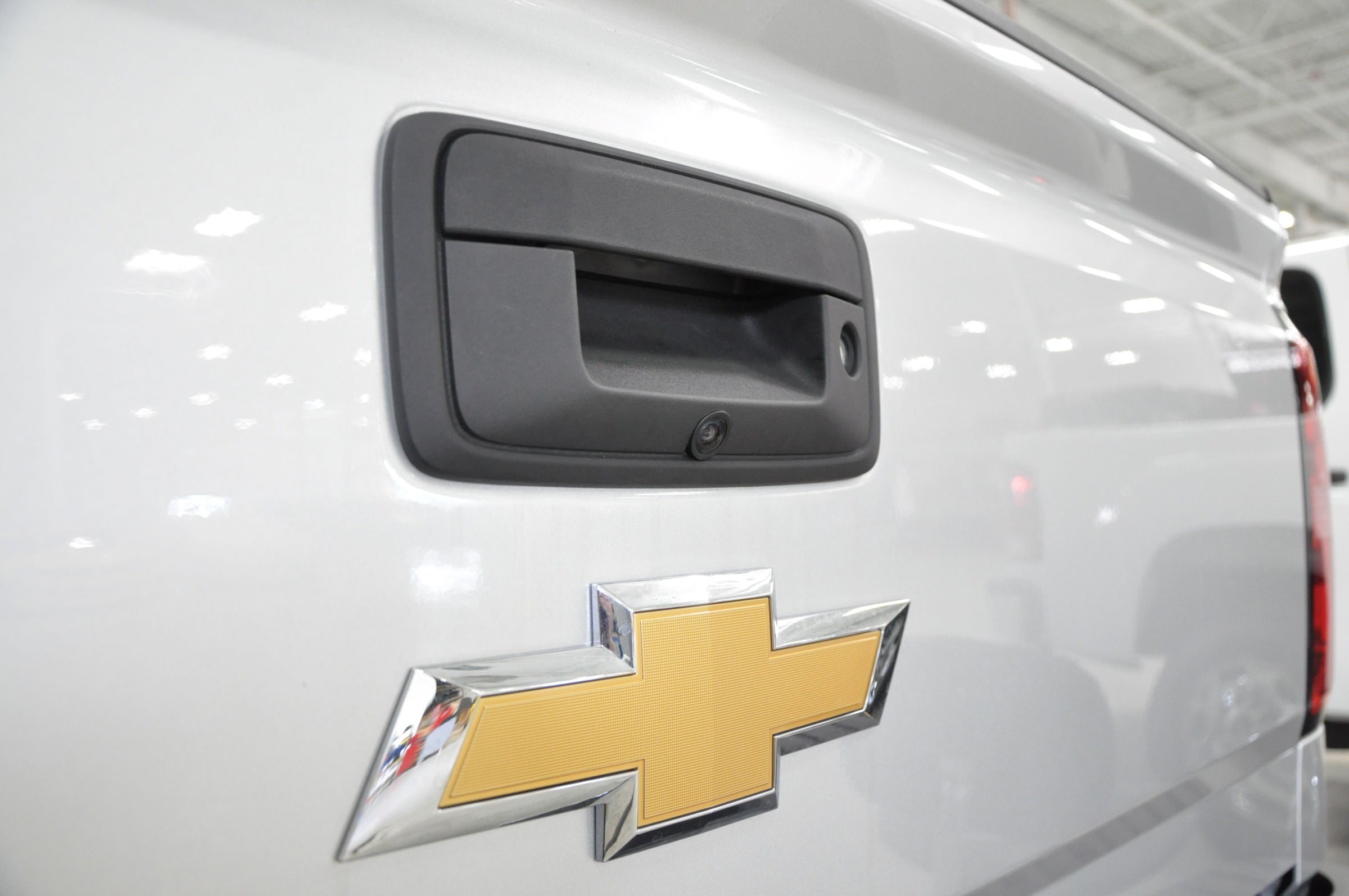

- GM® OEM tailgate handle with Camera Source exclusive camera pre-mounted - black textured surface

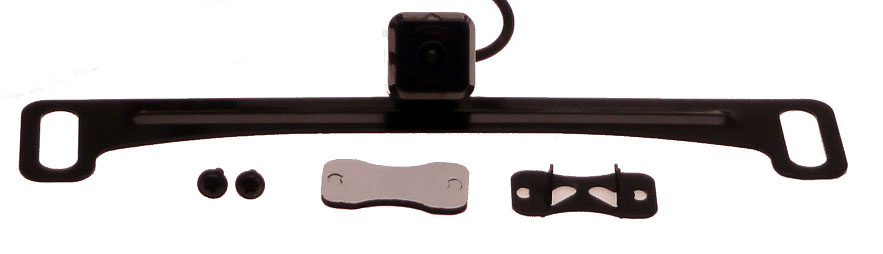

- Universal front camera with harness and dual mount brackets

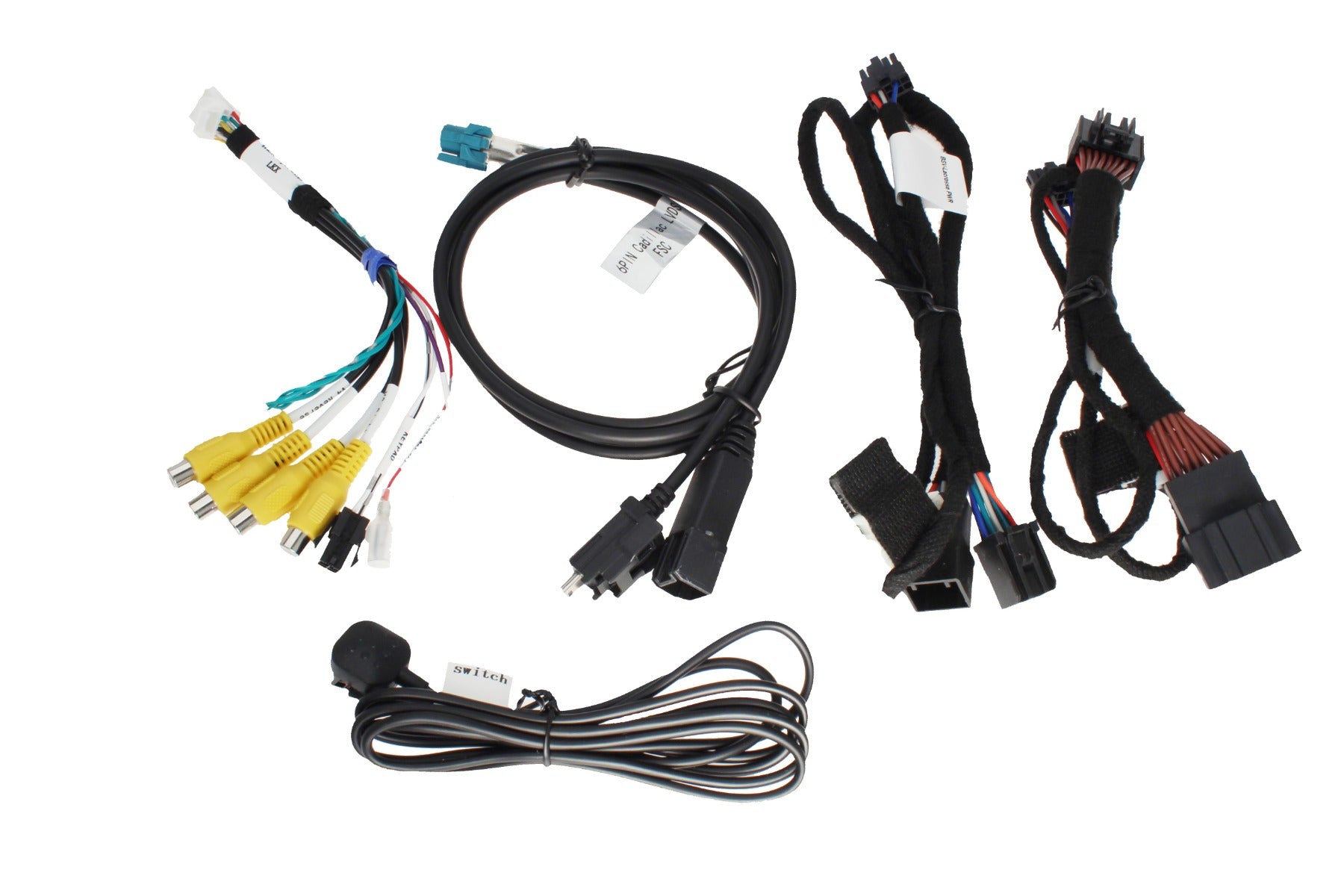

- Wiring harness with quick tailgate disconnect and weather pack connectors for a tight water-resistant connection. This ensures your wiring is protected, all electrical connections can be made inside the cab to avoid corrosion, and the tailgate can be unplugged with ease!
- Wire connectors
- Zip ties
- Detailed installation instructions
- 8.4" RADIO IN PICTURE IS NOT INCLUDED
Camera Specifications:
- Super CMOS
- 170 degree view
- 25 ft. harness
- <.2 LUX night vision
- 600 TVL
- Parking guidelines-removable
Multi Cam interface:
- Front facing camera can be triggered to power on automatically when the vehicle is shifted from reverse to drive for 5 seconds or manually activated using the included push button
- Side mirror mount cameras are activated using the turn signals. The camera will turn off after 7seconds of turn signal staying "ON" in cases like at a traffic light. Can also be activated manually using the included push button. (Additional cameras not included)
- Bed-view/cargo camera is manually powered on using the included push button. (Camera not included)
- Factory reverse camera operates the same-automatically comes on in reverse
- NO DEALER ACTIVATION REQUIRED!
The integration module is completely plug and play with your factory MyLink/IntelliLink system. Allows connection of four cameras total to the factory screen. Also, allows monitoring of any connected camera at any time while driving (not including OEM rear camera). Right and left blind spot camera inputs are automatically triggered by the turn signals.
*Additional cameras and monitor are not included with this kit. It is designed to work with your existing 8" MyLink/IntelliLink radio screen. This kit allows you to see what is directly in front of the truck as well as behind the truck. This camera and interface module kit comes with a 3 year warranty. Professional installation is recommended.
Not compatible if vehicle has Rear Seat Entertainment system.
Specifications
| System Manufacturer | EVI Systems |
| Number of Cameras | 2 |
| Camera Resolution | 600 TVL |
| Camera Type | Rear Camera, Front Camera, Multiple cameras (kit) |
| For a monitor it uses | Your factory display |
| Connection | Plug and Play to Factory Dash Display |
| Make | GMC,Chevrolet |
| Camera Mount Location | Factory Tailgate, Front Grille, Universal Mount |
| Night Vision | < .2 Lux |
| Camera Orientation | Rear Facing |
| Parking Guidelines | Selectable on/off |
| Power Supply | 12 Volts |
| Radio Screen Size | 8\ MyLInk/Intellilink |
| Reason for Shopping | Adding camera(s) |
| Sensor Type | Super CMOS |
| Vehicle Interface | Includes Factory Integration Module |
| Vehicle Category | Truck |
| Camera Input Ports | 4 |
| Video System | NTSC |
| Viewing Angle | 170 Degrees |
| Model | Sierra,Sierra HD,Canyon,Silverado,Silverado HD,Colorado |
| Warranty | 3 Year |
| Waterproof/Dustproof Level | IP 67 |
| Wiring Type | Hard Wired |
| Year | 2014,2015,2016,2017,2018 |
| Make Filter | Chevrolet, GMC |
| Model Filter | Canyon, Colorado, Sierra, Sierra HD, Silverado, Silverado HD |
| Year Filter | 2014, 2015, 2016, 2017, 2018 |
Compatibility
Vehicle must have IO5 or IO6 option code on the service parts sticker located in the glove box OR 2018+ vehicles will have this sticker located in the driver's side door jam by the "B" pillar. You can scan the QR code on the sticker using a mobile device to view the options.
2014-2018 Chevrolet® Silverado pickup truck with 8" MyLink display screen. IO5 or IO6 option code
2014-2018 Chevrolet® Colorado pickup truck with 8" MyLink display screen. IO5 or IO6 option code
2014-2018 GMC® Sierra pickup truck with 8" IntelliLink display screen. IO5 or IO6 option code
2014-2018 GMC® Canyon pickup truck with 8" IntelliLink display screen. IO5 or IO6 option code
Not compatible if vehicle has Rear Seat Entertainment system.
Installation
The Multi-cam integration module is plug and play with your factory 8" MyLink/IntelliLink screen. You will need to remove your factory 8" screen to gain access to the back of the connections. The module will be plug and play and has RCA connections for the cameras to connect directly to the screen.
Replace your existing tailgate handle assembly with this assembly, which is preloaded with rear camera. Route the harness to the cab and connect to the interface module.
Front camera mounts to any flat surface and has parking guidelines that can be turned off. You will need to switch it to the forward looking image on the harness during the installation.
NO DEALER ACTIVATION REQUIRED
